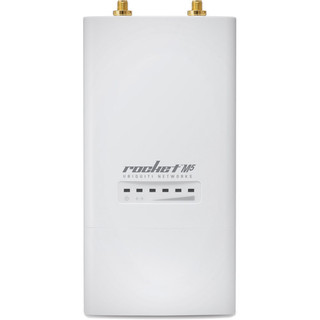

Ubiquiti UB-ROCKETM5 Base Station

AirMax Rocket M5, 5GHz High Capacity MIMO PtMP, PtP AP

Categories: ,

Description

Features

  • MIPS 74Kc Processor
  • 128MB SDRAM/8MB Flash Memory
  • 5725 – 5850 MHz Operating Frequency
  • 27 dBm Output Power
  • 2 x RP-SMA (Waterproof) Connections
  • airOS 5 Advanced Operating System
  • airView and airControl
  • airMAX TDMA Technology
  • Plug & Play Integration with airMAX
  • Frequency and Channel Flexibility

Specifications

Processor

MIPS 74Kc

Memory

128 MB SDRAM, 8 MB flash

Networking Interface

1 x 10/100 Mb/s

RF Connections

2 x RP-SMA (waterproof)

LED Indicators

1 x Power
2 x Ethernet
6 x Signal strength

Power Consumption

8 W (maximum)

Power Supply

24 V, 1.0 A PoE adapter

Power Method

Passive PoE (pairs 4, 5+; 7, 8 return)

ESD/EMP Protection

± 24KV air/contact

Operating Frequency

5725 – 5850 MHz* 1

Please Note:

US units with FCC ID: SWX-RM5T-DFS are allowed 5250 – 5850 MHz

close

Output Power

27 dBm

TX Power Specifications

Modulation: 802.11a
Data Rate: 6 – 24 Mb/s
Average TX: 27 dBm
Tolerance: ± 2 dB

Modulation: 802.11a
Data Rate: 36 Mb/s
Average TX: 25 dBm
Tolerance: ± 2 dB

Modulation: 802.11a
Data Rate: 48 Mb/s
Average TX: 23 dBm
Tolerance: ± 2 dB

Modulation: 802.11a
Data Rate: 54 Mb/s
Average TX: 22 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS0
Average TX: 27 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS1
Average TX: 27 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS2
Average TX: 27 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS3
Average TX: 27 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS4
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS5
Average TX: 24 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS6
Average TX: 22 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS7
Average TX: 21 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS8
Average TX: 27 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS9
Average TX: 27 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS10
Average TX: 27 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS11
Average TX: 27 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS12
Average TX: 26 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS13
Average TX: 24 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS14
Average TX: 22 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS15
Average TX: 21 dBm
Tolerance: ± 2 dB

RX Power Specifications

Modulation: 802.11a
Data Rate: 6 – 24 Mb/s
Sensitivity: -94 dBm minimum
Tolerance: ± 2 dB

Modulation: 802.11a
Data Rate: 36 Mb/s
Sensitivity: -80 dBm
Tolerance: ± 2 dB

Modulation: 802.11a
Data Rate: 48 Mb/s
Sensitivity: -77 dBm
Tolerance: ± 2 dB

Modulation: 802.11a
Data Rate: 54 Mb/s
Sensitivity: -75 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS0
Sensitivity: -96 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS1
Sensitivity: -95 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS2
Sensitivity: -92 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS3
Sensitivity: -90 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS4
Sensitivity: -86 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS5
Sensitivity: -83 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS6
Sensitivity: -77 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS7
Sensitivity: -74 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS8
Sensitivity: -95 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS9
Sensitivity: -93 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS10
Sensitivity: -90 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS11
Sensitivity: -87 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS12
Sensitivity: -84 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS13
Sensitivity: -79 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS14
Sensitivity: -78 dBm
Tolerance: ± 2 dB

Modulation: 802.11n/airMAX
Data Rate: MCS15
Sensitivity: -75 dBm
Tolerance: ± 2 dB



Modes

Access Point and station

Services

Web server, SNMP, SSH server, telnet, ping watchdog, DHCP, NAT, bridging, and routing

Utilities

Antenna alignment tool, discovery utility, site survey, ping, traceroute, and speed test

Distance Adjustment

Dynamic ack and ack-less mode

Power Adjustment Range

Software adjustable UI or CLI

Security

WPA2 AES only

QoS

Supports Packet Level Classification WMM and User Customer Level: High/medium/low

Statistical Reporting

Up time, packet errors, data rates, wireless distance, Ethernet link rate

Other

Remote reset support, software enabled/disabled, VLAN support, 64QAM, 5/8/10/20/30/40 MHz channel width support

Special Features

airMAX mode, traffic shaping with burst support, discovery protocol, frequency band offset, and ack-less mode

Wireless Approvals

FCC, IC, and CE

RoHS compliance

Yes

Enclosure Characteristics

Outdoor UV stabilized plastic

Shock and Vibration

ETSI300-019-1.4

Operating Temperature

-22 to 167°F (-30 to 75°C)

Operating Humidity

5 to 95% (non-condensing)

Dimensions

6.30 x 3.15 x 1.18″ (160.00 x 80.00 x 30.00 mm)

Weight

17.63 oz (500.00 g)
