Description
Features
- One or two handset room stations per apartment
- Door release from apartment station – use Aiphone RY-PA relay

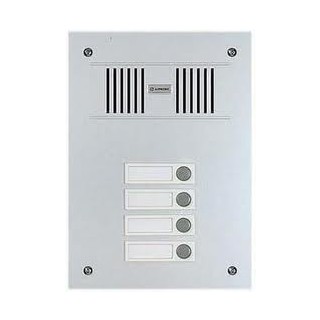

- Single entry panel 0 – 10-call panel
- Add-on panels in 8 and 16-call sizes (VCH-8, VCH-16)
- Expanded entry panels in 26, 42, and 58-call sizes
- Backlit directory at entrance panel
- Activate external buzzer at room station (with RY-PA)
- Surface mount box for single VC-M or VCH panel
- 12V DC 80mA (intercom) 100mA (lamp)
- VC-K handset – one or two per residenceDimensions
- All door stations: H260mm X W186mm X D68mm
- Back Box for flush mount – H230mm X W156mm X D68mm
Specifications
|
Power Source
|
12V DC, 80mA (intercom), 100mA (lamp) – Use PS-1225UL
|
|
Communication
|
Electronic buzzer rings VC-K station(s), frequency is approx. 600Hz, pick up (either) handset too reply
|
|
Wiring
|
Door to master: 5-cond., non-shielded Between masters (6 looped): 10-cond., non-shielded Between masters (12 looped): 16-cond., non-shielded
|
|
Distance
|
Door to master: 500’(22AWG)
|
|
Wire Type
|
Door to room station or tenant station: Aiphone #812205
Between room station or tenant station (6 looped): #812210 Between room station or tenant station (12 looped): #812216
|
